Product Details
＋
Product Description:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting:
Oil drain flange:
Oil drain gasket:
8mm x 1.25 (thread pitch) Stud:
8mm x 1.25 (thread pitch) Locking Head Nut:
T3 Inlet Flange (for Turbo Manifold):
T3 Inlet Gasket:
Discharge Flange GT 4 Bolt 3" (Stainless Steel):
Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening:

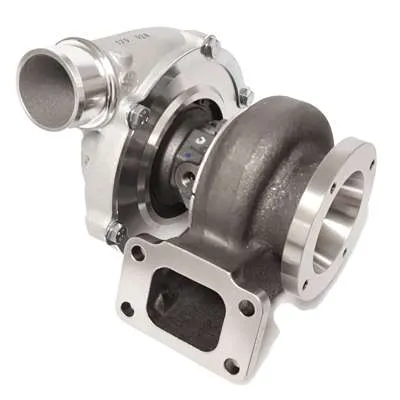

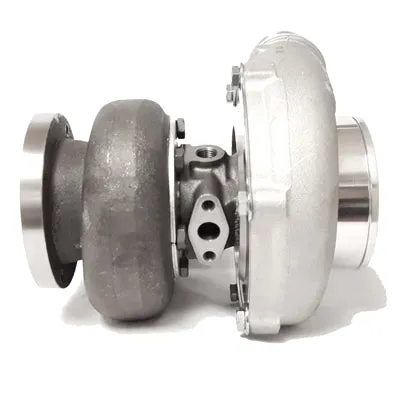

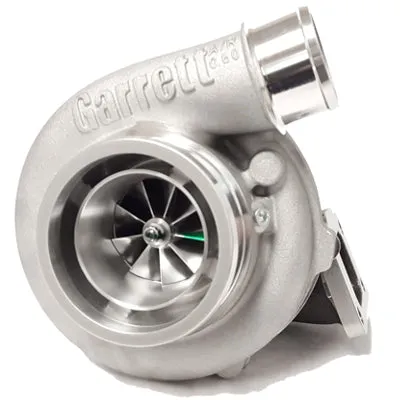

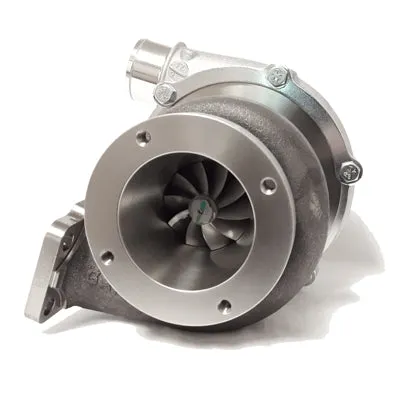

- Garrett GEN2 GTX3071R dual ball bearing turbocharger with .82 A/R T3 turbine housing and GT 4 BOLT 3" conical exit. Advanced GEN2 billet compressor wheel capable of 650HP!
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
INSTALLATION HARDWARE:
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
