Product Description

• H.265 /H.265 dual-stream video compression

• Supports Full-channel AI-Coding

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs

• Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth

• Up to 1 channel video stream ( analog channel ) Perimeter Protection

• Up to 4 channels video stream ( analog channel ) SMD Plus

• Up to 1 channel video stream (analog channel ) human face recognition

• IoT & POS functionalities

• Functions

• Real Time Face Recognition

• Video stream real time face recognition

• Facial attributes analysis features including gender, age, expression, glasses, moustache, mouth
  mask

• Identify people and also capture, record faces with metadata

• Facial feature filtering while real time display, only show faces with target features

• Perimeter Protection

• Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc

• Enables system to act secondary recognition for the targets

• Improving alarm accuracy

• SMD Plus

• SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm

• It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes

• Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility providing clear human and vehicle details

• Smart H.265

• Smart Codec, H.265 can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras

• HDCVI/AHD/TVI/CVBS Auto-detect

• The XVR can auto recognize the signal of front-camera without any setting

• It makes operation more friendly and convenient

• High Definition Camera Input

• The XVR supports up to 5MP HDCVI camera and 6MP IP camera input

• Coaxial Audio/Upgrade/Alarm

• The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation

• Long Distance Transmission

• The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p

• AI Search

• Extract and classify person and vehicles from massive video data, easy for end users to trace historical informaton and analyze

• Person & Vehicle optonal for playback to achieve quick target search, saving event retrieval time

Product Specification

Brand	Dahua
Product Type	DVR
Model	DH-XVR5104HS-4KL-I3
Series	WizSense
System
Main Processor	Embedded processor
Operating System	Embedded linux
Perimeter Protection
Performance	1 channel, 10 IVS for each channel
Object Classification	Human/Vehicle secondary recognition for tripwire and intrusion
AI Search	Search by target classification (Human, Vehicle)
Face Recognition
	Max 8 face pictures/sec processing
Performance	1 channel video stream face recognition, only support analog camera
Stranger Mode	Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management	Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries&regions and state can be added to each face picture
Database Application	Each database can be applied to video channels independently
Trigger Events	Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance	4 channels
AI Search	Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input	4 channels, BNC
HDCVI Camera Input	4K, 6MP, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps,720p@ 25/30 fps
AHD Camera Input	4K, 5MP, 4MP, 3MP, 1080p@ 25/30 fps, 720p@ 25/30 fps

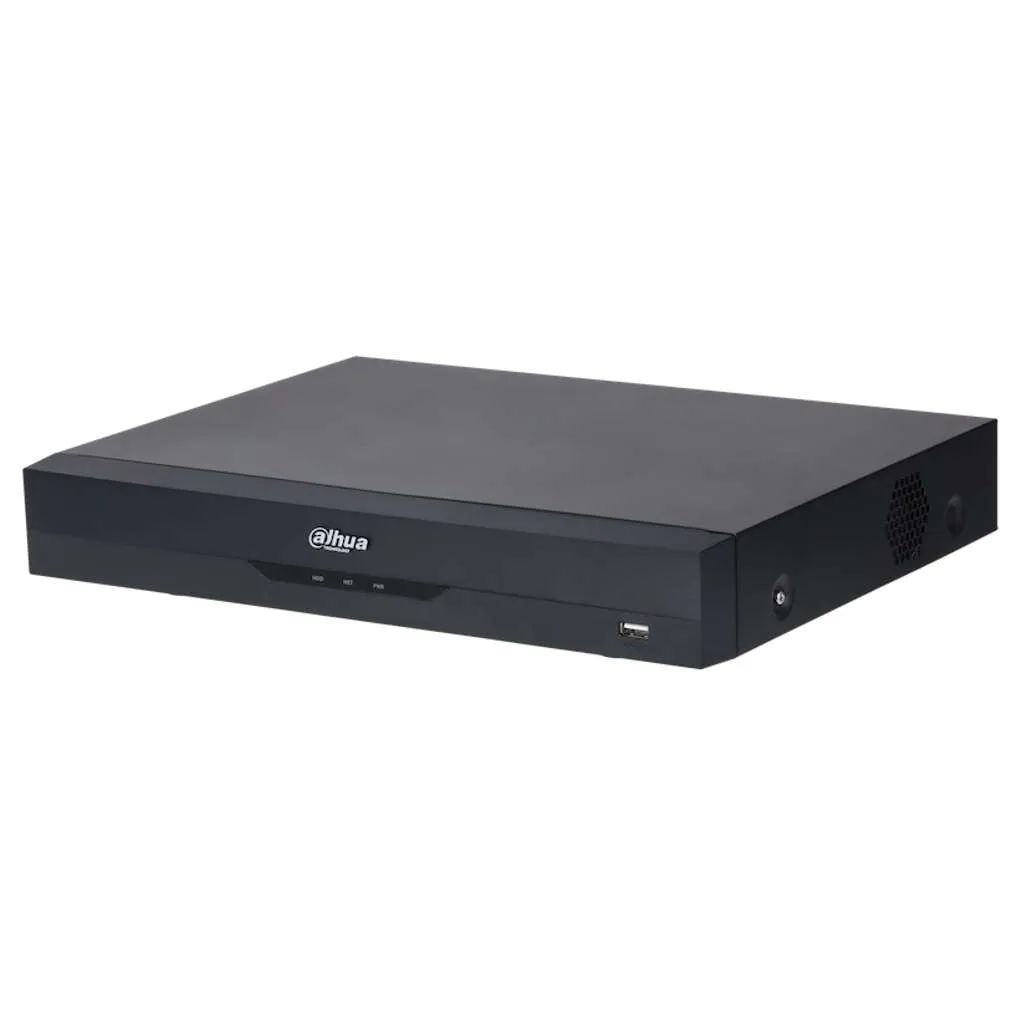

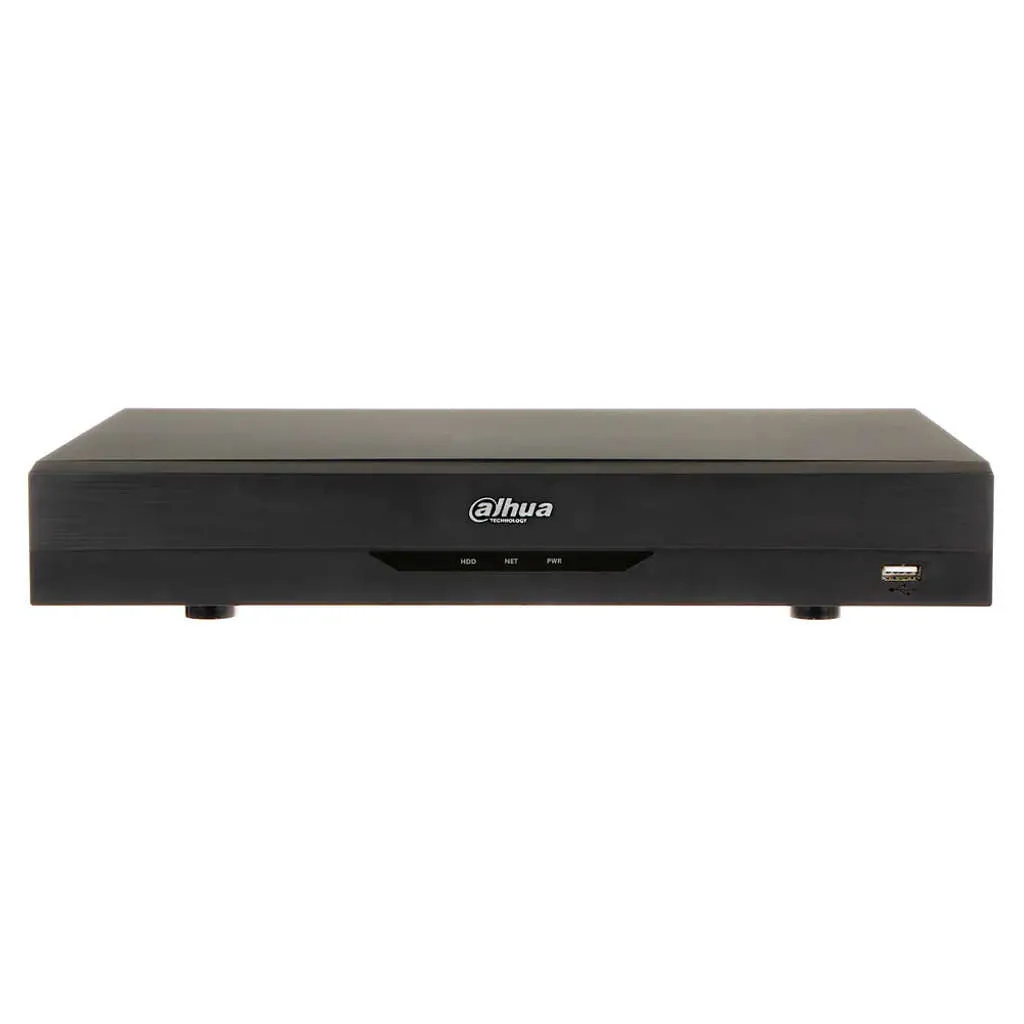

TVI Camera Input	Dahua WizSense Digital Video Recorder 4 Channel DH-XVR5104HS-4KL-I3 Title: DefaultTitle $ 69.67 $ 53.59 Please select combo product attributes The combo subtotal is $,SAVE$ Unavailable Add to Cart Buy It Now You May Also Like $ 63.74 $ 49.03 Drifire Hydroflash Hi Vis FR/AR Rain Bib Overall $ 45.00 NFL Chargers Crewneck $ 73.03 $ 56.18 Ray-Ban Wayfarer Meta Smart Glasses $ 72.83 $ 56.02 Enespro Airlite 12 Cal Arc Flash Coveralls (CAT 2) $ 89.66 $ 68.97 Waterproof Flexible Light Strip - IP68 - 12V Black Light UV $ 58.55 $ 45.04 POC Do Blade Orange Glasses $ 39.99 iPhone 11 Pro Case Genuine Leather Diary $ 60.11 Charging Cable Shimano EW-EC300 1700mm $ 67.59 $ 51.99 Vuzix Shield® Smart Glasses Prescription Inserts $ 82.54 $ 63.49 POC Do Blade Orange Glasses ＋ Home AR Glasses ＋ High-Definition AR Glasses Compact Smart Glasses Smart Sunglasses ＋ UV Protection Glasses Wireless Systems ＋ Bluetooth Audio Smart Glasses Lighting ＋ Sync-to-Movement LED Strips Charging Systems ＋ Portable Glasses Chargers Cart ＋ Your cart is currently empty. Total: VIEW CART
