Product Details ＋

LED Dream Color Controller with radio remote for RGB LED strips ( WS2812, WS2813). Equipped with LOCK function (mode memory).

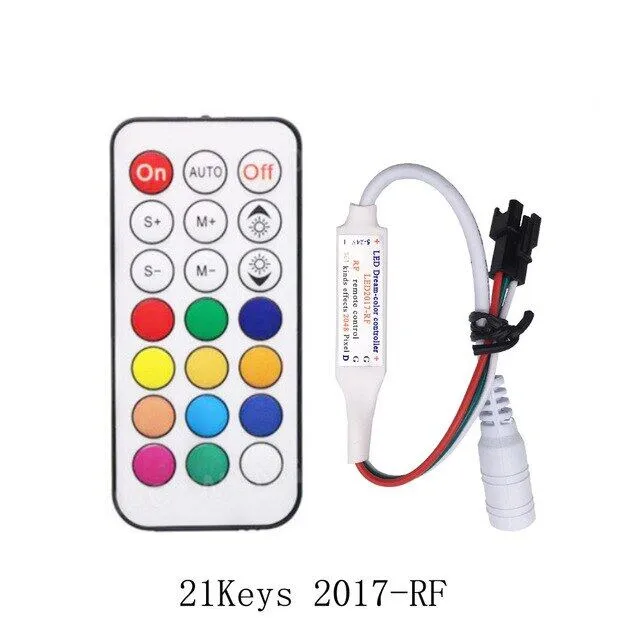

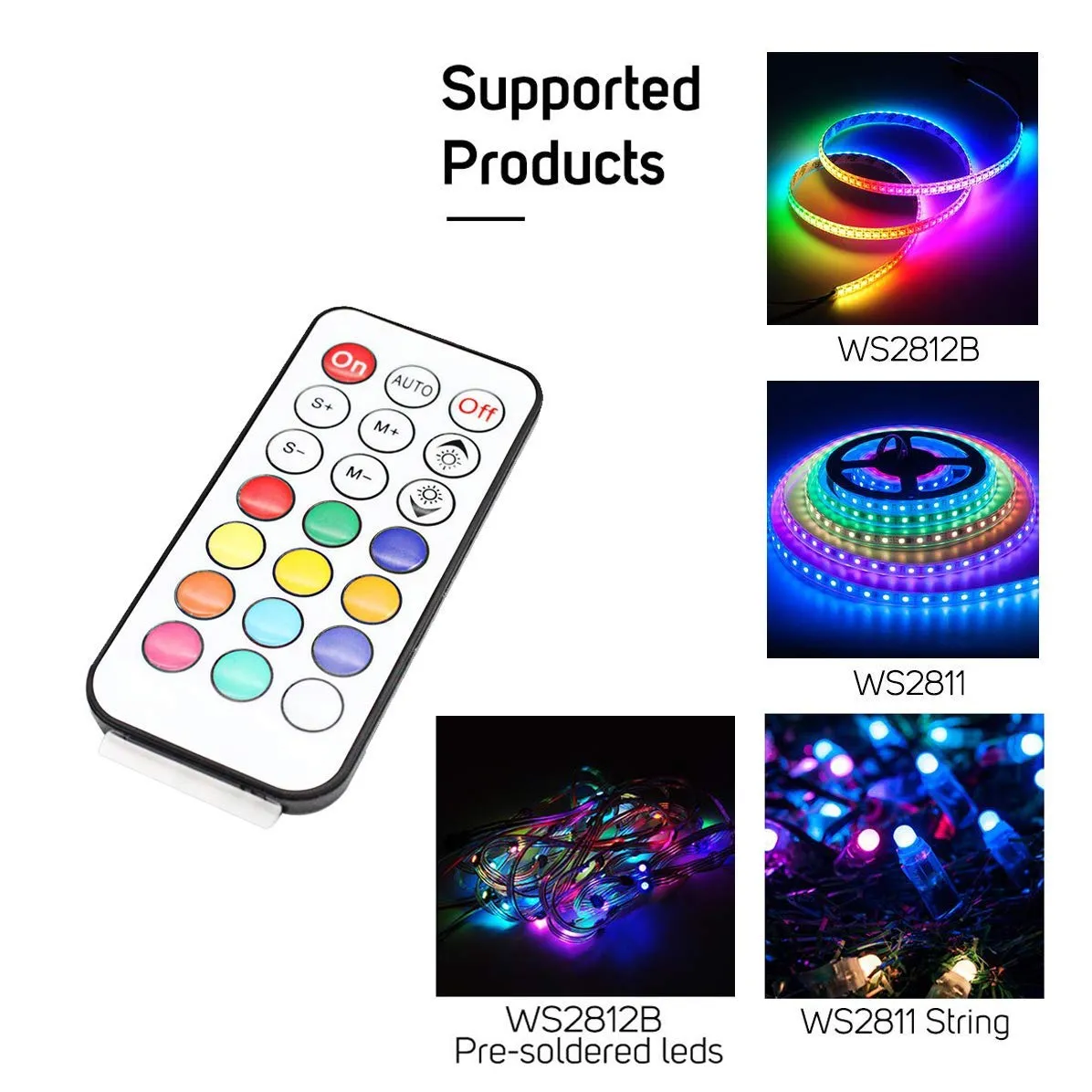

LED2017-RF is a wireless Multicolor LED controller with a radio remote control for RGB LED strips (WS2812, WS2813).

Features

361 different modes
Brightness and speed adjustment
DIY function
21 keys

Technical Specifications

Voltage	5-24 V
Maximum number of pixels	2048
Max. remote control distance	30 m
Current consumption	10 mA

Note: Use 5v Led if the power supply to your RGB controller is 5v | Use 12v Led if the power supply to your RGB controller is 12v | Use 24v Led if the power supply to your RGB controller is 24v

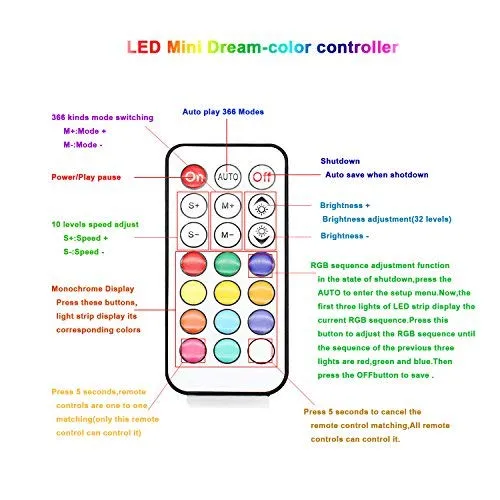

2048 PIXEL ADJUSTMENT METHOD

Maximum number of control pixels: Total 2048 pixels.

We recommend using 300 pixels (Approximately 5 meters of light strip length).

Press and hold for 5 seconds to enter the setup menu and press MODE  and MODE- to adjust the number of LED pixel points. Only adjust 32 points each time.

Press the B button to adjust the RGB sequence. (Tips: If you want to adjust the pixel points from 300 to 2048, you need to press the 'MODE ' key 54 times.)
